Cement Testing Instruments

Light weight with ceramic wool insulation. The outer casing made of thick mild steel sheets painted attractively. Heating Chamber consist of grooved refractory bricks in which heating elements are inserted in and are easily replaceable. Temperature controlled by Dual display microprocessor based Digital temperature indicator cum controller with R type sensor. compensating cable etc. working on 440 V. Max. Temperature.: 1400 °C. & Working Temp.: 1350 °C.

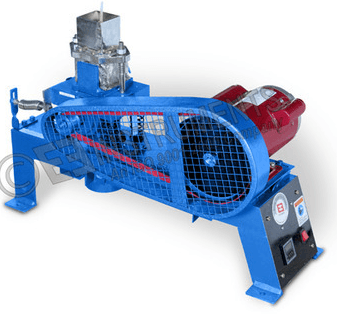

The machine is capable for compaction of cement mortar cubes as per IS: 4031 and designed as per Standard IS : 10080. The complete frame assembly consists of device to hold a 7.06 cm cube mould to feed the sample in the mould. The frequency of vibration is 12000 ± 400 R.P.M. Vibration per minute. Supplied complete with one 7.06 cm cube mould and a DIGITAL Timer. Complete with One No. poking rod to meet IS: 10080 requirements.

The Muffle Furnace and Refractory Furnace are precision-engineered horizontal front-loading laboratory furnaces designed for high-temperature heating, calcination, annealing, sintering, ashing, heat treatment, and material testing applications. The furnaces incorporate lightweight ceramic fiber wool insulation, significantly reducing heat loss while providing faster heat-up, excellent temperature uniformity, and improved energy efficiency. Available in Digital and GMP models with Mild Steel Powder Coated or Stainless Steel (SS304) construction, these furnaces are suitable for research laboratories, educational institutions, pharmaceuticals, metallurgy, ceramics, cement, glass, chemical industries, and quality control laboratories.

IS 269, 712, 5514, 1727, 2645, 6932 (Part IX), BS 6463, and EN 196-3 standards. The double-walled, argon-welded inner chamber is made of S.S. 304 with high-grade glass wool insulation for excellent thermal efficiency. The bath is designed to raise the temperature from 27 °C ± 2 °C to boiling point in 27 ± 3 minutes. Available in thermostatic (non-digital) and digital temperature indicator-cum-controller models. Supplied complete with a stand to accommodate up to 12 Le Chatelier moulds, ensuring specimens remain fully immersed as per code requirements.

No description available.

Lime putty consistency can be adjusted using this instrument. A 50 mm. I.D. metal cylinder is mounted on a wooden platform. A close fitting piston moves up and down without turning in this cylinder. Working stroke is 65 mm. A metal bridge is provided to measure degree to which ejected putty out of cylinder has slumped. As per IS:6932 (Part - 6)

As per fig.2 of IS:3535-1986 (R.A.2018)

IS:1528(Part 20)-1993 & ISO:5013-1985

No description available.

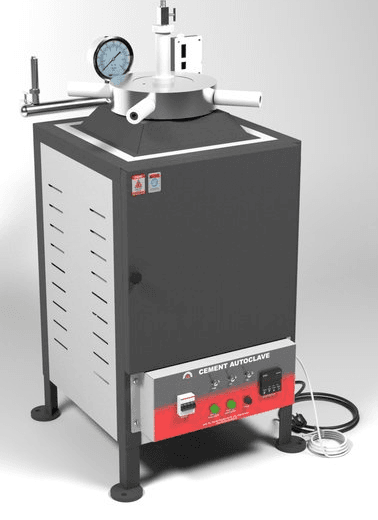

The Autoclave is suitable for conducting accelerated soundness test on cements by the autoclave expansion test requiring constant steam pressure with the correspondent constant temperature. As per IS 4031:1988 (P-3). Supplied complete with Test bar holder. Supplied without Length Comparator and shrinkage bar Moulds which are available at extra cost.

Compliance with following International Standards : ASTM C156-03, 1980.

This jig is designed for testing of 40 x 40 x 160mm cement prism after breaking in Flexure and also can be adapted with 50mm platen to test 2” or 50mm mortar cement cube specimen. This jig can be fitted to Compression Test Machine

Compliance Standards: IS 4139, IS : 12894, Application: To measure length change in calcium silicate bricks using a suitable micrometer.

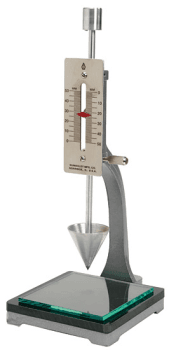

Used to determine initial and final set times of Portland cement, masonry cement, hydraulic hydrated lime and certain mortars. ASTM C266, AASHTO T154, ASTM C141, ASTM C91

As per IS:11263,IS 4031 Part-12 Made of stainless steel.

As per EN 459-2, ASTM C110, ASTM C91, ASTM C5. This apparatus includes a container for mixing lime with water, a Digital thermometer with thermocouple to monitor temperature changes and a stirrer to ensure consistent mixing.

The apparatus is used in specification tests of masonry cement and physical testing of quicklime and hydrated lime. As per ASTM C110, ASTM C91, ASTM C1506, ASTM C207

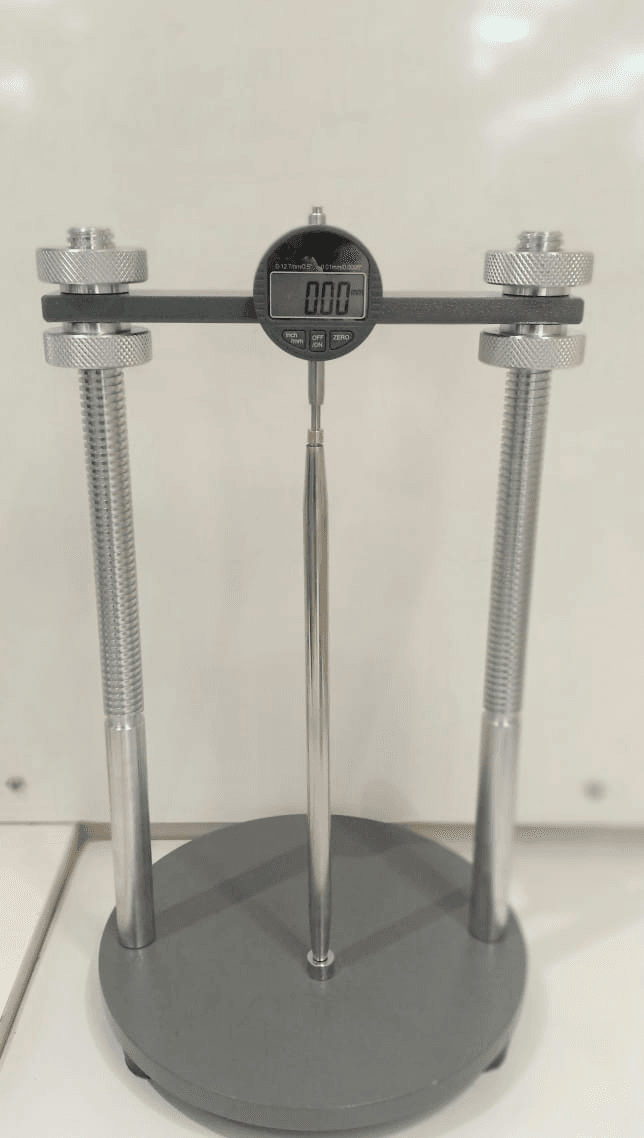

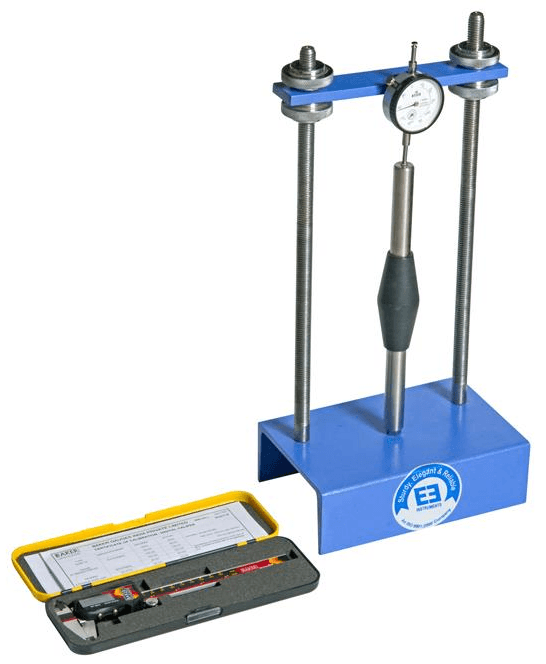

Compliance Standards: IS 4031, IS 9459, ASTM C452, ASTM C151, ASTM C490, The apparatus consist of an adjustable length comparator with Digital dial micrometer of 0.001 X 10 mm, together with a suitable reference bar.

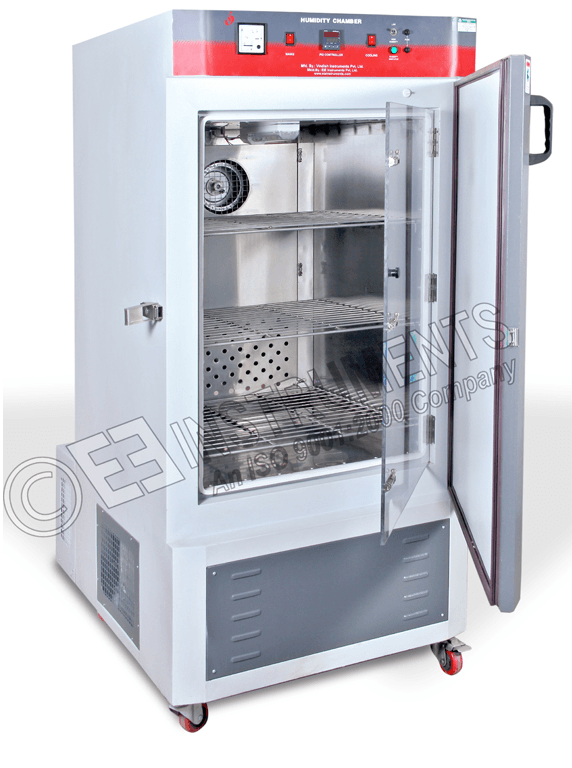

Double Walled, Inner SS 304, Outer made of Mild steel material duly powder coated, 65 mm thick PUF Insulation; Full length inner glass door for clear inner view, Outer door with Magnetic Gasket & Lock. Forced air circulation for uniform temperature throughout the chamber.Dual preset electronic Digital Temperature Controller Cum Indicator.Temperature Range : 10°C to 60°C ± 0.5°C; Humidity Range from atmospheric humidity to 95% RH Controlled by Digital Display Controller (Direct RH Indicator) ± 3% RH, working on 230 V AC single phase.

No description available.

No description available.

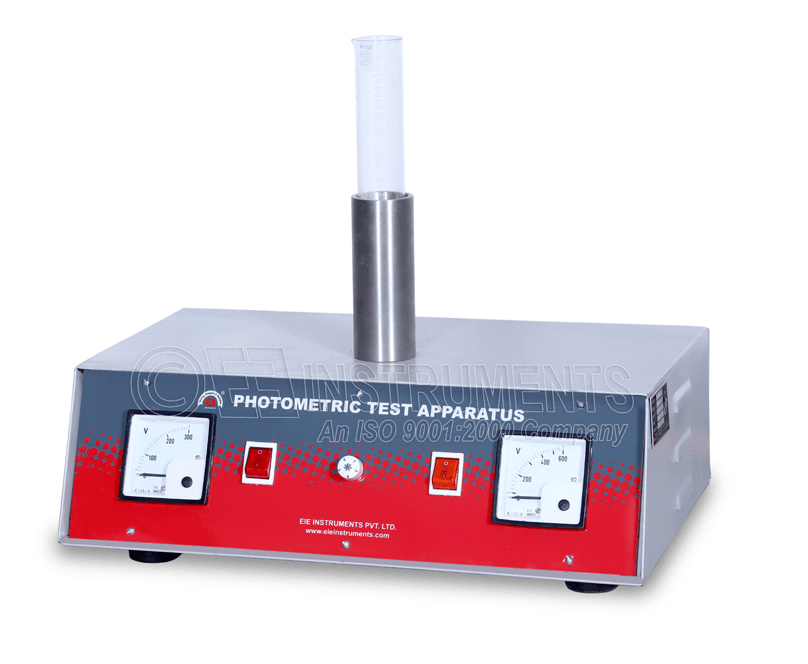

hotometric test Apparatus for quick determination of SO3 in cement.

No description available.

No description available.

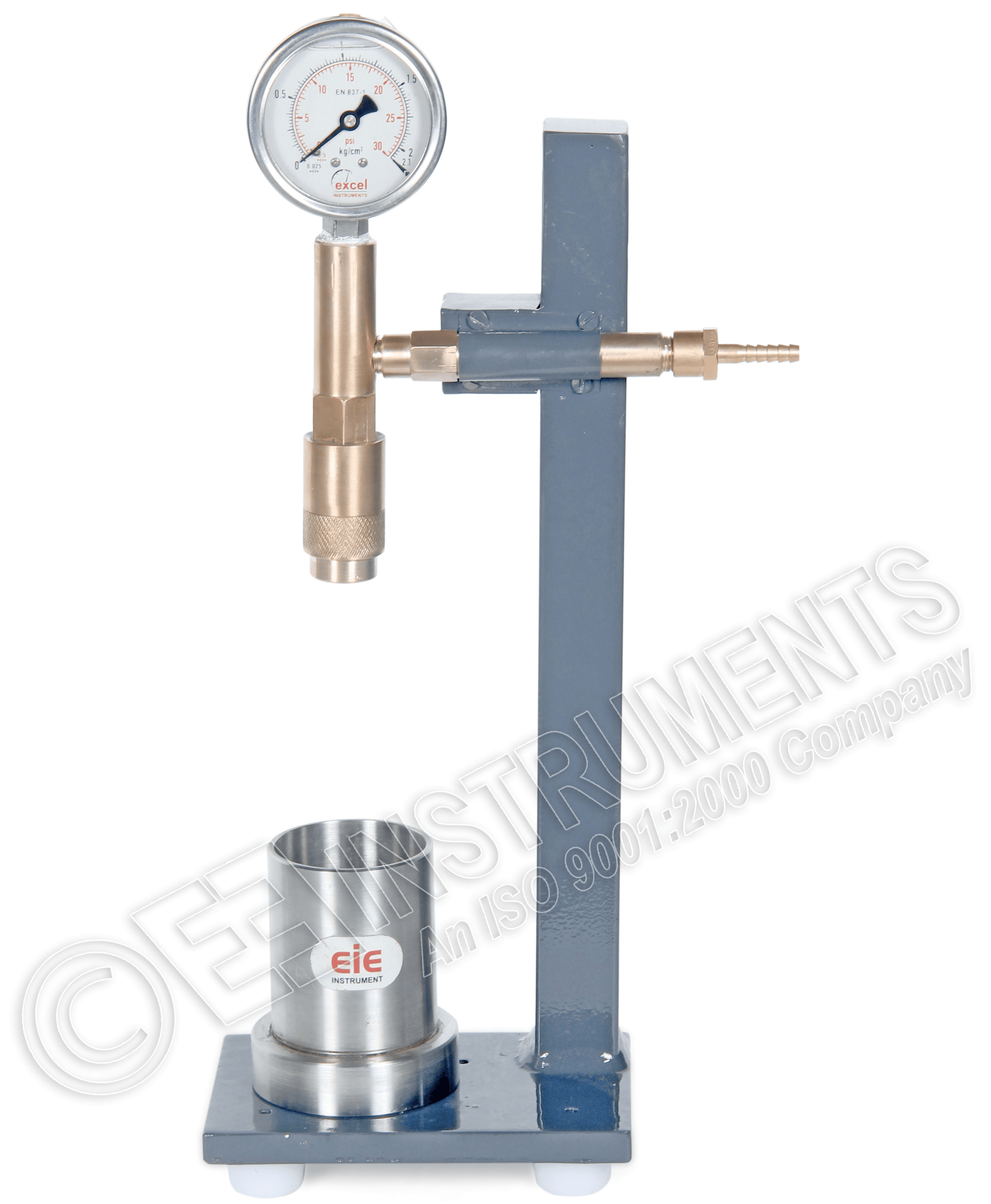

Wet Sieving App. with Pressure Gauge, Spray Nozzle fitting to attach the Apparatus to a Water Source.

No description available.

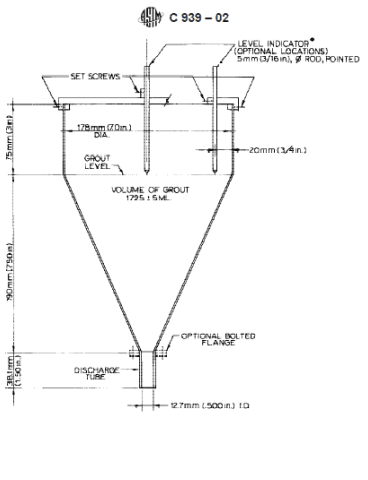

The fluidity of the grout, expressed in seconds, is a measure of time necessary for a stated quantity of grout to pass through the orifice of the cone, under the stated conditions.

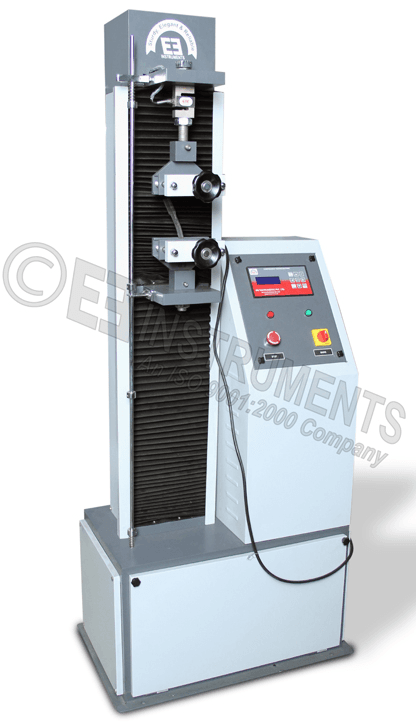

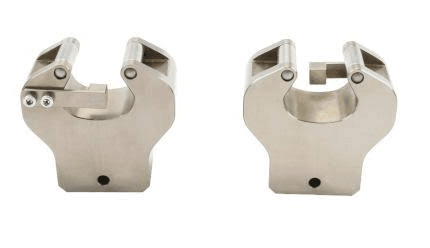

Computerized Tensile Strength testing machine having capacity of 0‑250 Kgf (2.5 KN) (2500 N). Supplied complete with dedicated software program. Equipped with ball screw, Induction Motor & drive (for speed variation 50mm/min to 300mm/min) along with encoder to measure the elongation using pair of grips. Grip is available at extra cost and quoted separately. Grip is an essential accessory. Software also quoted separately.

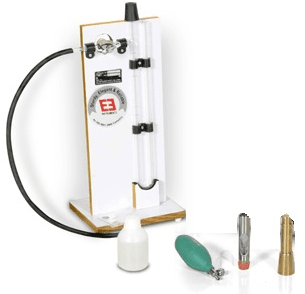

As per IS:5516. ASTM C204

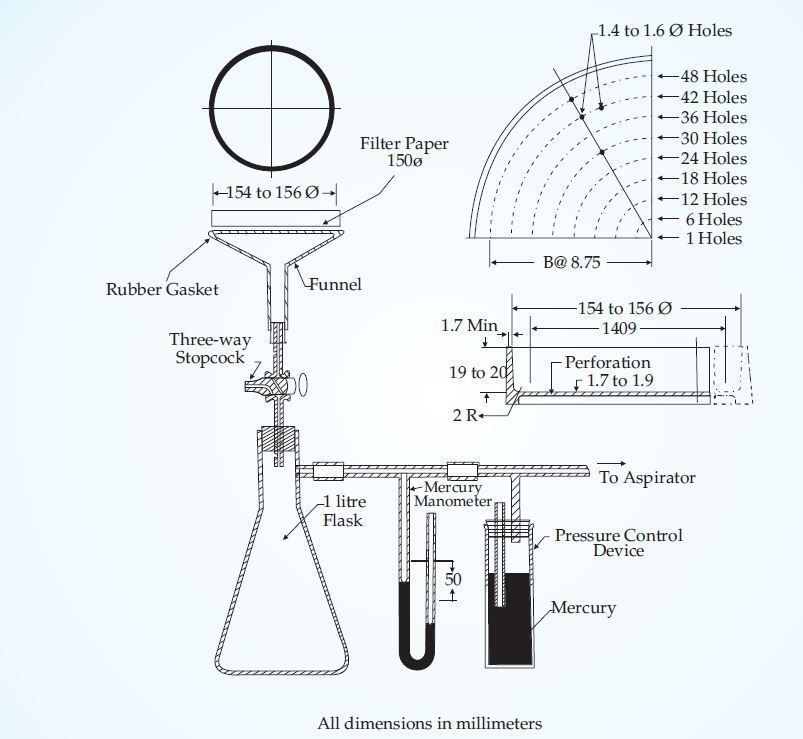

To determine the water retentivity characteristics of masonry mortar. As per figure for 4 of IS 2250 (Appendix C)., IS 10850, IS-4031-Part 13. Complete with Aspirator Pump.

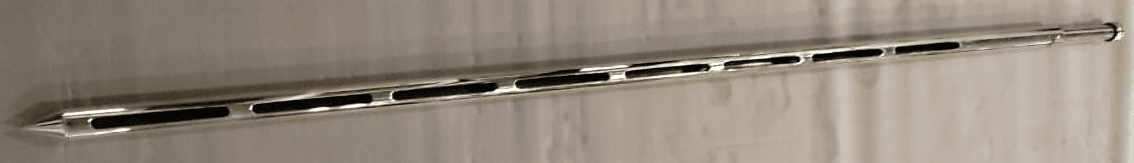

The slotted tube-sampler will be between 1.5 to 1.8 meter long and about 35 mm in outside diameter and will consist of two polished brass telescopic tubes with registering slots which are opened or closed by rotation of the inner tube; the outer tube being provided with a sharp point to facilitate penetration. Extremely useful for sampling from Bulk Cement and fly ash ponds.

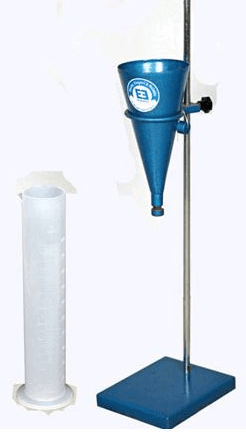

This cone is used to find out viscosity of slurry and like material. The marsh cone is 6 inch(150 mm) in diameter at the top and 12 inch(300 mm) long, and tapers to join a tube 2 inch long and 5 mm inside dia. The capacity of the funnel is 2000 cc. the top of the cone has a screen with 1.5 mm opening for screening out lumps. Time in seconds required to flow out 1000 cc of slurry from cone is measured as funnel viscosity of the material.

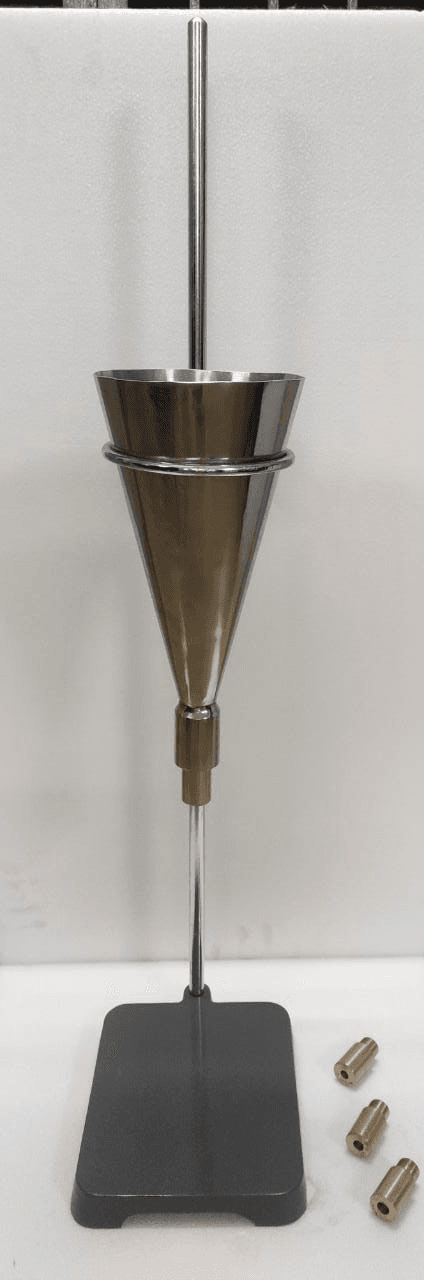

The flow cone apparatus is used to determine the fluidity and workability of grout, particularly for prestressing ducts in post-tensioned structures. The test measures the time required for a specified volume of grout to flow through an orifice of a standardized cone. The measured flow time helps assess the consistency and suitability of the grout for application. Made of Stainless Steel 304. Supplied with 4 interchangeable (8, 9, 10 and 11 mm diameter) nozzles with fitting bush. Interchangeable nozzle 12.7 mm and 15mm available at Extra Cost.

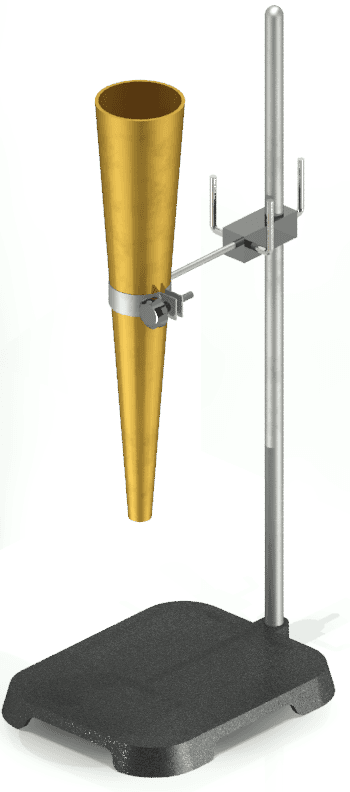

The J14 Funnel is used for measuring the flowability of grouts, mortars, and other fluid materials. It is similar to flow cone tests but typically designed for more fluid materials, especially in tunneling, grouting, and construction applications. As per EN 445, EN 934-6 , NF P18-507, JIS A 6204

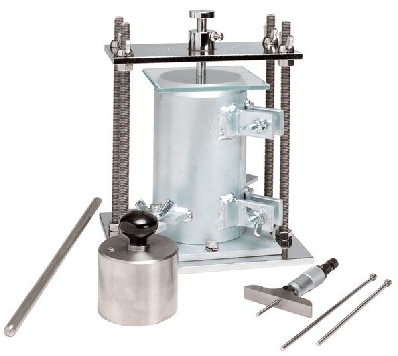

Grout Volume Change (Micrometer Bridge Set) is useful in measuring grout volume change. It is not a single machine but it is a unit of different tools. The unit is so well designed that it can hold one cylinder for repeated volume change measurement. During the measurement, there is no movement or disturbance in the specimen. The unit testing covers the determination of changes in height. It measures from the time of molding till the mixture gets harden. The machine also measures the volume change that happens due to hydration and settlement. Grout Volume Change is also capable of measuring volume change due to evaporation, chemical effects as well as physical effects. Complete with Micrometer Bridge, Micrometer Depth Gauge 25mm, Cylinder Mould 75x150mm, Temping Rod, Glass Plate 100mm, Weight 3 lbs, 6kg.

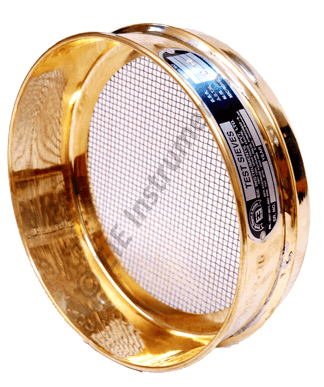

High-quality Test Sieve (200 or 300mm diameter) made from rolled Brass or Stainless Steel (S.S.304) with a seamless spun body and beaded top edge for extra strength. Features a tight-fitting design for stack stability and comes with stainless steel wire mesh (below 2.36mm) or punched plate (above 2.36mm), ideal for accurate particle size analysis in laboratories and industries. Available with Calibration certificate.

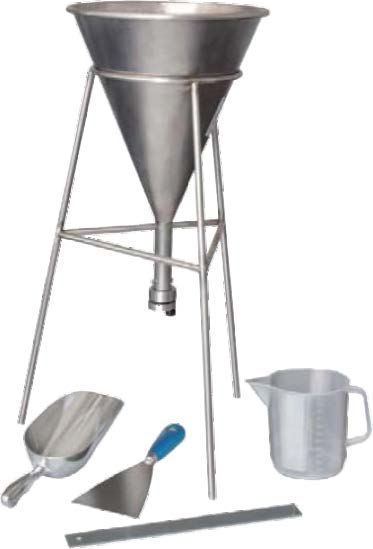

Bulk Density of Cement Apparatus is used for the measurement of the apparent density (bulk density) of powders and non-cohesive materials.

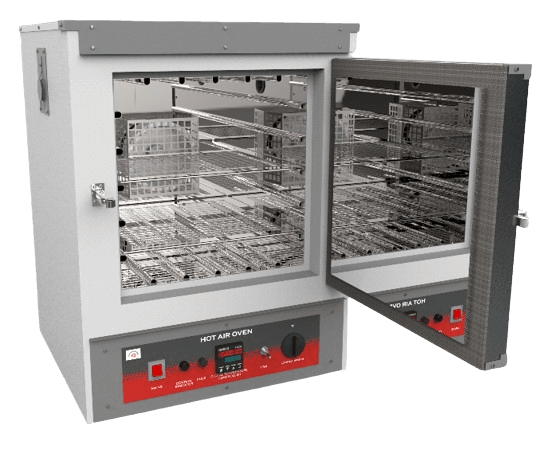

Double walled, inner chamber S.S.304 Or SS.304 , Outer CRC powder coated or S.S.316, 65 mm thick glass wool insulation , 80/20 nichrome heating elements placed under ribs at bottom and sides for uniform heat distribution Temp. Range. 50˚C to 250˚C , Thermostatic or Auto tune Dual Display Digital, forced air circulation, Working on 230 Volts AC Single Phase.123456789

Supplied without air jet sieves, Vacuum system and Electronic weighing balance

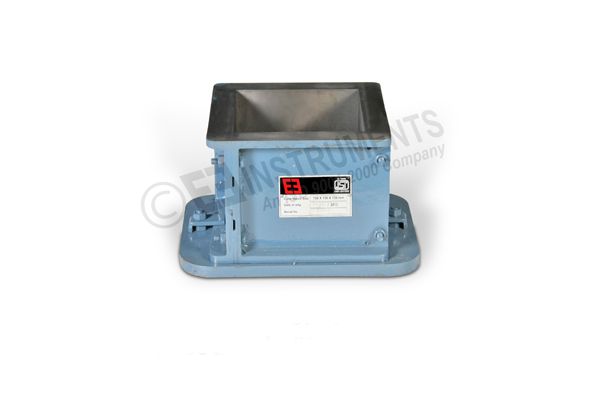

Used for preparation of cube specimens for compressive strength testing of concrete, cement, mortar, lime and gypsum.

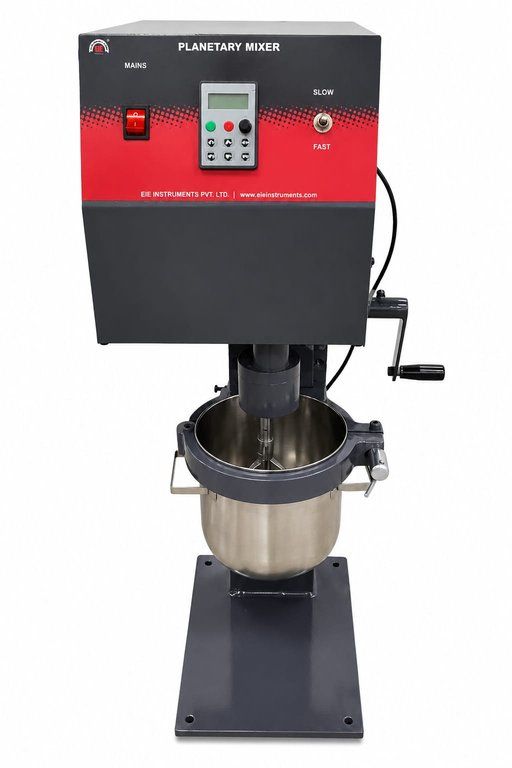

The instrument is specially designed to prepare cement mortar for Strength Determination. It is used for mixing cement pastes, mortars and pozzolanas. It can also be used for uniform mixing of soils with additives such as lime, cement, etc. The machine is advance version that requited no changing of the gear. It will also show the current rpm.

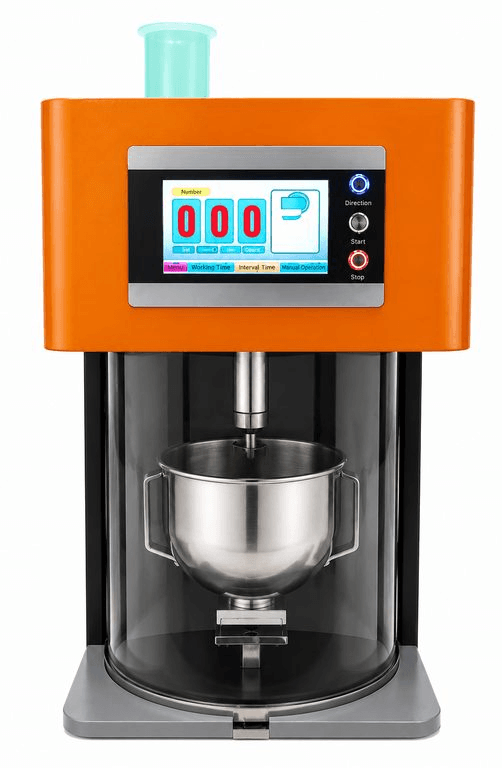

The Fully Automatic Digital Mortar Mixer is designed for the preparation of standard cement mortar prisms in accordance with EN 196-1, EN 196-3, IS 4031, and ASTM C451. It features a 5-liter nominal capacity, microprocessor-based control, and an integrated sand dispenser for accurate and repeatable mixing.

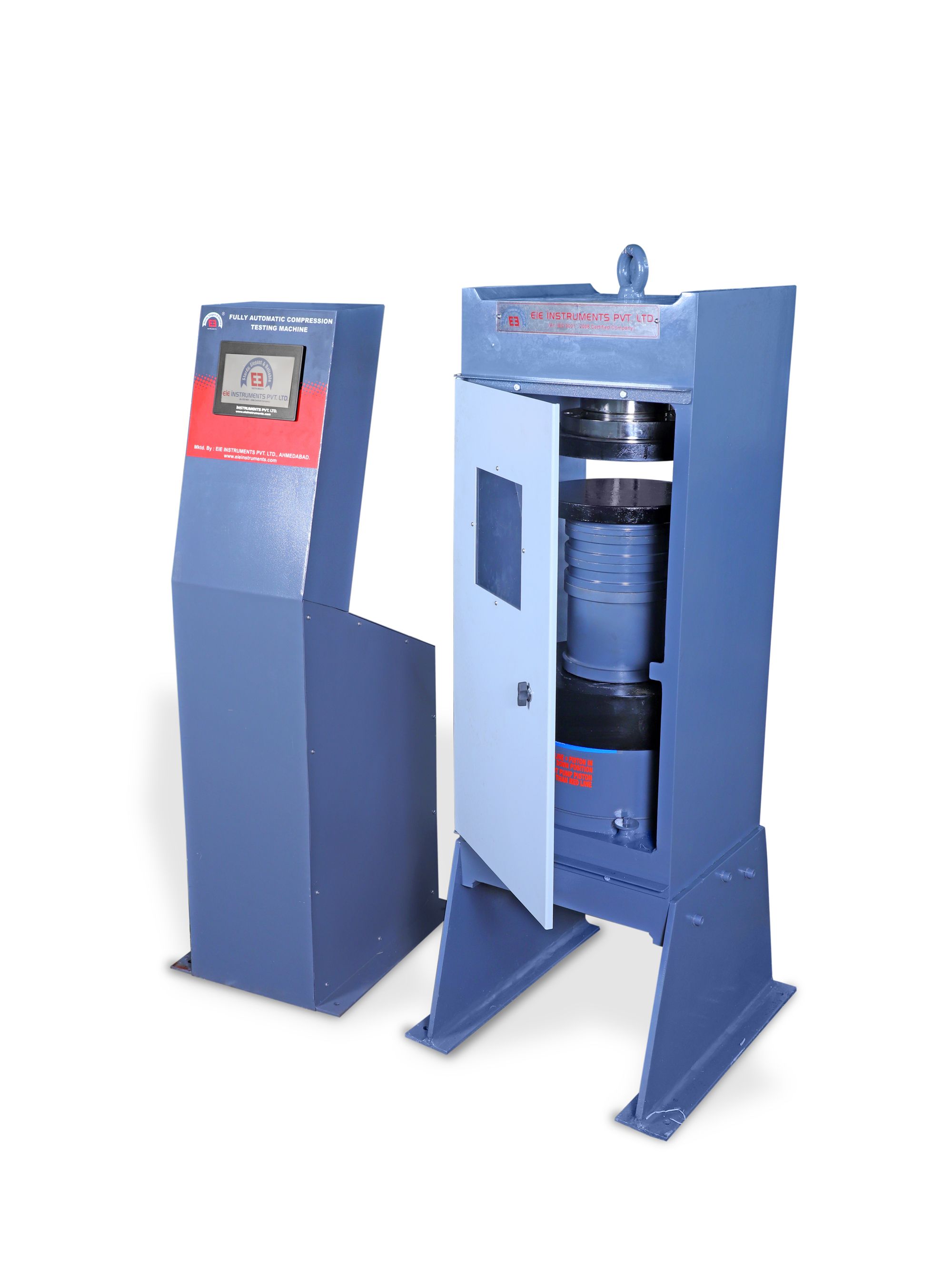

Manufactured as per International design, Plate model for highest mechanical stability, accurate centering of load and excellent repeatability. Fully Automatic pace rate control, auto stop and auto release on failure of test specimen, can be attached with flexural load frame or 500 KN load frame. Further details as mentioned in Technical Part on following pages.

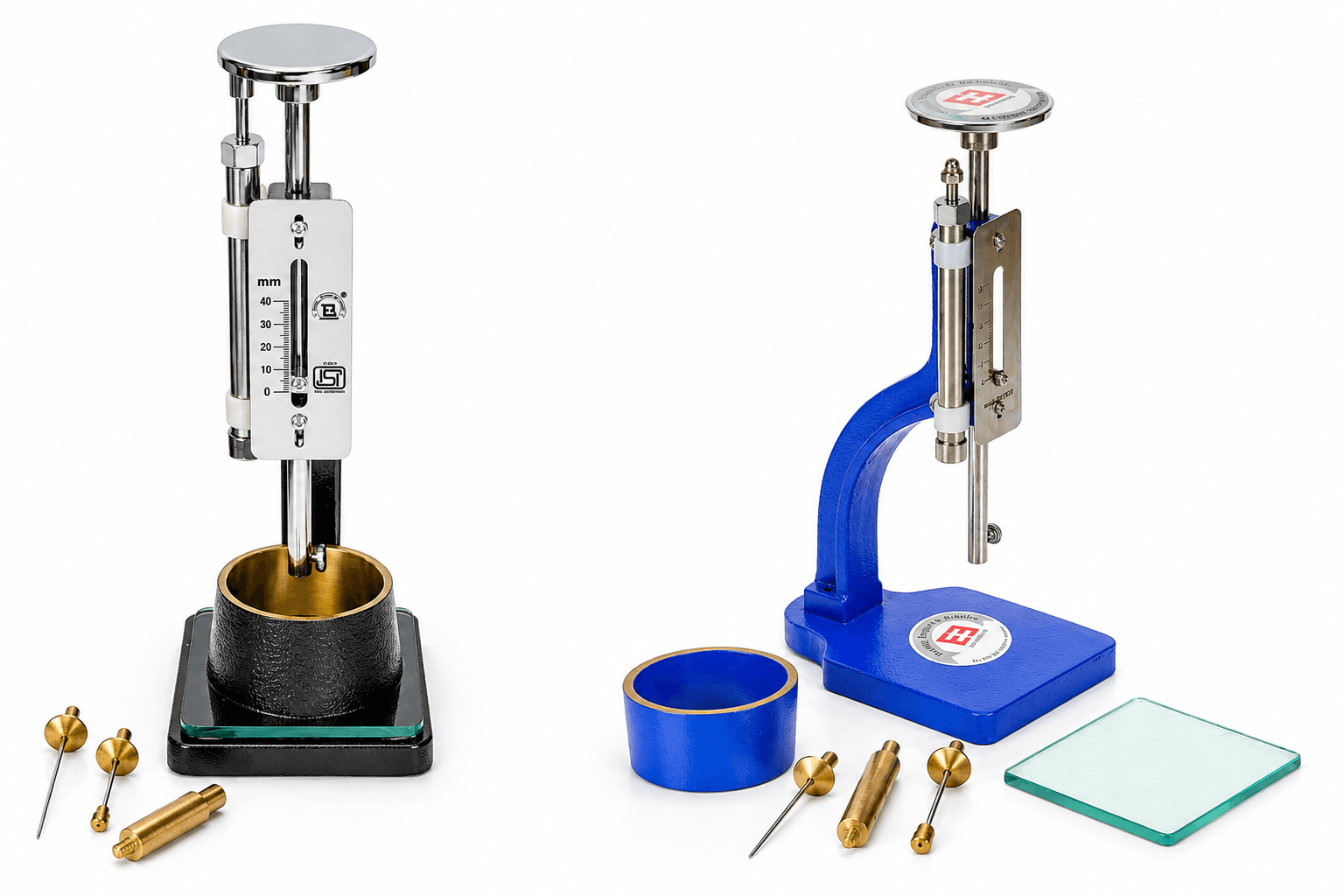

Consist of a metallic frame bearing a movable rod with cap at one end and a Vicat Mould 80 ± 5mm in Dia. at the base, 70 ± 5mm at the Top and 40 ± 0.2mm High & with a glass base plate consistency plunger, initial and final setting needles in a nice jewelry case. With dash pot to facilitate the gentle lowering of the needle. As per IS:5513,IS-4031(PART 5), IS 4031 (PART 4)

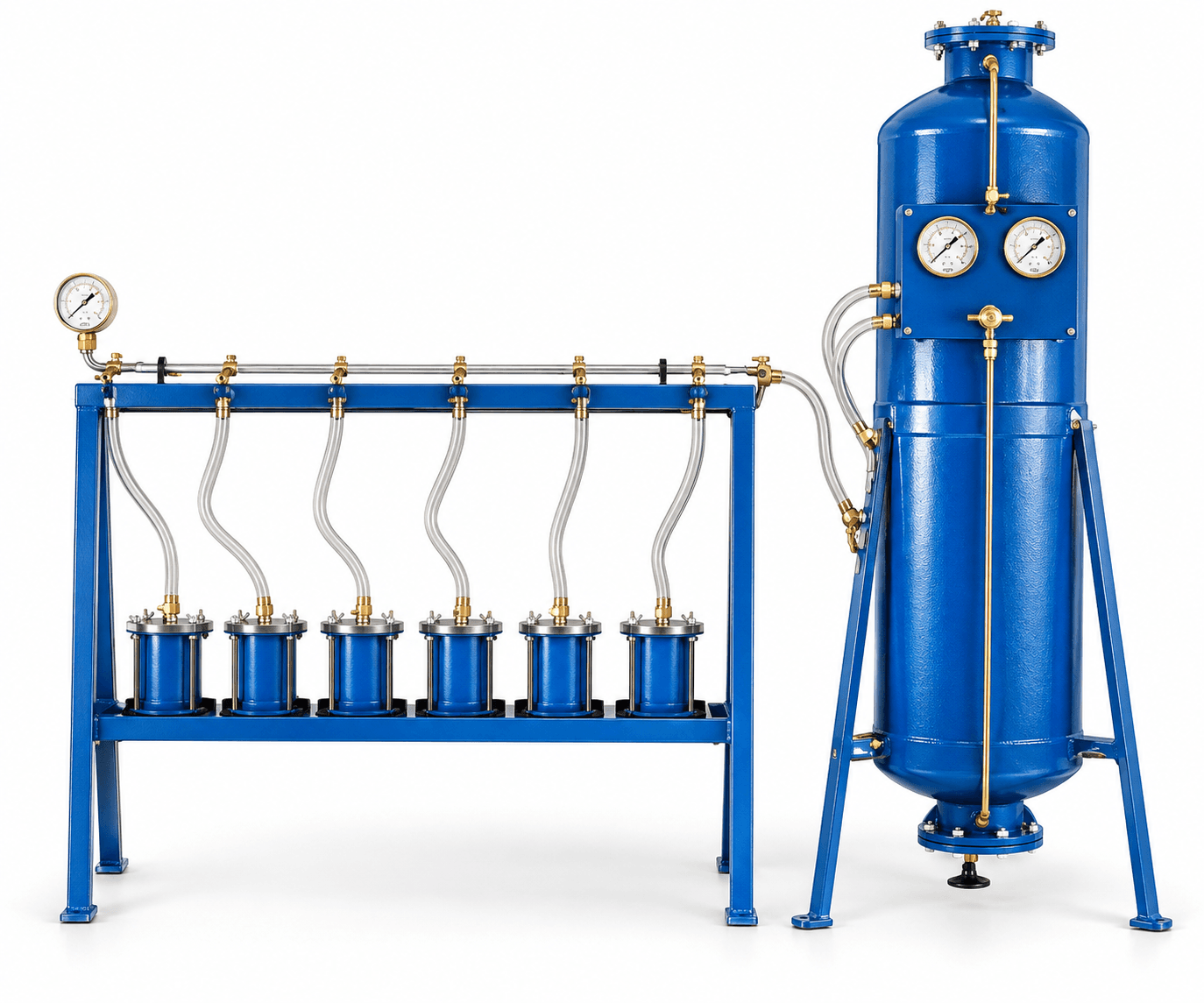

Primarily used for test of integral water proofing compound. As per IS:1727 and IS:2645. Supplied complete with 6 Nos. Brass permeability cell, pressure chamber, armoured heavy duty rubber rubber hose, standard compacting rammer and a stand to mount the permeability cell. Air compressor of tank capacity 60 ltrs, fitted with pressure gauge and pressure regulator and capable to apply pressure of 7 kg/cm2 is also provided.

IS:4031/ IS:10086
