Available Variants:
- Vicat Needle Apparatus - ISI Marked
- Vicat Needle Apparatus - Non ISI
Compliance Standards:
- IS 5513
Applications:
- For determination of consistency of standard cement paste and initial and final setting times of cement.
Common Details:
- The apparatus consists of a frame bearing a movable rod with cap at one end. A needle and plunger can be attached at the other end.
- A dashpot is provided to facilitate the gentle lowering of the movable rod / needle.
- The apparatus includes a Vicat mould, consistency plunger, initial and final setting needles and glass base plate.
Variant-Specific Details:
1. Vicat Needle Apparatus – ISI Marked:
Vicat apparatus will be manufactured as per IS 5513-1996.
Frame:
- Made of cast iron having a movable rod made of brass with a cap made of brass at one end. Needle and plunger can be attached at the other end. The needles and plunger will be capable of being fixed centrally into the movable rod by means of clamping screw.
Needles:
- The needles for initial and final setting time will be of hardened and tempered steel. Their fitting ends will be of brass.
- There shall be about 6 mm clearance between the bottom end of the needle, when it is raised, and the top edge of the ring mould, to enable the mould to be located in position without damage to the needle.
Plunger:
- Plunger will be of polished brass 10 ± 0.05 mm in dia. with a projection of the fitting end for insertion into the movable rod. The lower end will be flat. Its length shall be 50 ± 1 mm.
Movable Rod:
- Movable rod will carry an indicator which moves over a graduated scale attached to the frame.
- A clearance of 0.25 mm around the movable rod is kept to facilitate free movement. A suitable arrangement will be provided to secure the movable rod in rest position when the apparatus is not in use.
Graduated Scale:
- Graduated scale will be of 40mm in length and the smallest division of the scale will be 1mm.
Vicat Mould:
- The Vicat Mould will be in the form of frustum of a cone with an internal dia of 70 (± 0.5mm) at the top, 80 (+/- 0.5mm) at the bottom and height of 40 (± 0.5mm).
- The mould will have minimum wall thickness of 4mm. A non porous base plate of glass or metal of 3mm thickness will also be provided.

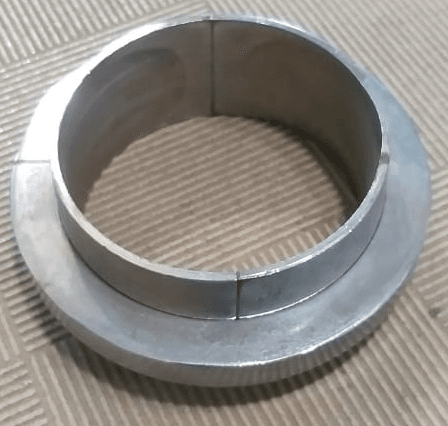

- Split type mould with clamping will also be supplied along with the main unit.
2. Vicat Needle Apparatus – Non ISI
- Consist of a metallic frame bearing a movable rod with cap at one end and a Vicat Mould 80 ± 5mm in Dia. at the base, 70 ± 5mm at the Top and 40 ± 0.2mm High with a glass base plate, consistency plunger, initial and final setting needles in a nice jewelry case.
Relevant Standards:
- IS: 5513
- IS-4031(PART 5)
- IS 4031 (PART 4)
Other Equipments Required For The Test:
- Electronic Balance 1 kg Capacity X 0.01 gm accuracy
- Temp. and Humidity Controlled room
- Standard Weight Box 500gm to 1 mg
- Gauging Trowel
- Stop Watch
