WATERBATH FOR WATER ABSORPTION TEST OF CERAMIC TILE
Waterbath For Water Absorption Test Of Ceramic Tiles
Detail Specification as per following page. Can accommodate tiles sizes up to 300 x 300 mm.
Variants
Boiling Water Method

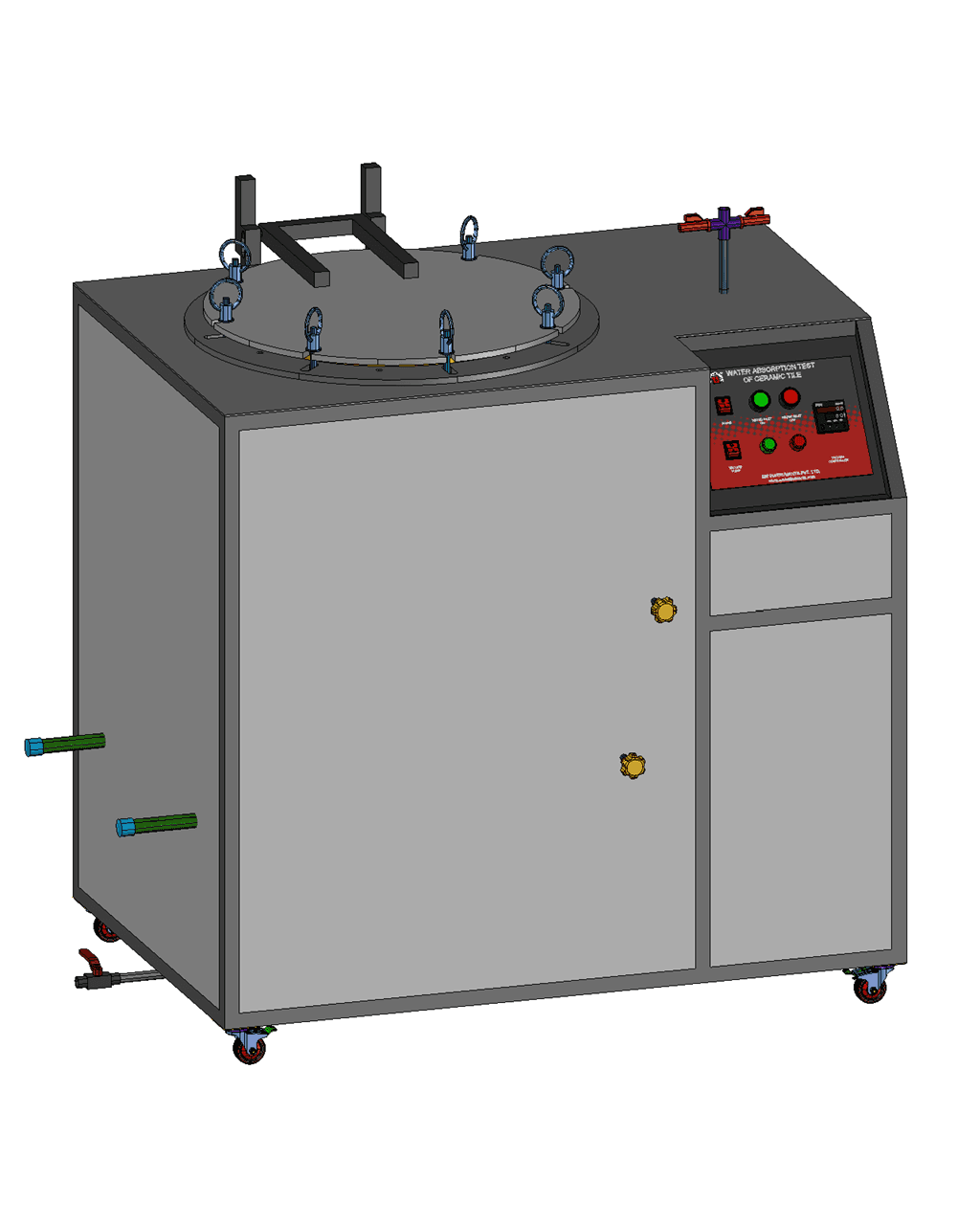

Vacuum Method
- ConstructionDouble walled in construction
- Inner chamberMirror polished Stainless Steel material S.S. - 304 Grade
- Exterior bodyMild steel material
- PaintPowder coated in attractive shades
- Lid of the bathMatt finished Stainless Steel material S.S. - 304 Grade
- InsulationGlass wool insulation for minimum heat loss
- Temp Range5 °C above ambient to 100 °C
- Temp controlMicroprocessor based Auto-Tune PID Digital Temp Indicator cum controller
- Temp, Accuracy± 0.5 °C
- Temp. SensorPT-100 Sensor
- StirrerHigh speed stirrer for uniform temp distribution
- Stirrer MotorElectric motor of 1/20 HP
- MOC of Stirrer shaftAnti - corrosive Material
- MOC of PropellerAnti - corrosive Material
- Heating elements04 KW
- Can accommodateTest specimen up to 300 X 300 mm (AS PER BIS 13630-2 & ISO 10545-3 Standard)
- Operation on230 Volts, 50 Hz, Single Phase, AC Supply
- Supplied withVertical stand made from strong S.S. rod to place 20 x 20 cm ceramic tiles. Stand will be removable
- —Stirrer is fitted on side of the bath, which allows obstruction free usage of working area.
- Overall Dimensions970 X 630 X 710(L X W X D) mm
