Bursting Strength Tester – 10 & 40 Kg/cm²

Model Number : EIE-PT-101DH10/40M

Manual Push Button type model indicating burst pressure on Bourdon Type Pressure Gauges capacity 08 kg/cm2 & 40 kg/cm2 for paper and paper board testing respectively.

Product PDF Instant Quote

DetailsTechnical SpecificationsAccessoriesSpares

Complies with following International Standards:

ISO 2758, 2759, 2559, 3303, 3689, BS 3424, 3137, ASTM D3786, D774, D2738, T810, T403

Salient Features:

Proven and reliable performance
Scientifically calibrated through our in-house calibration laboratory
Sturdy in construction
Correctly matched motor gives constant pumping rate, eliminating manual error.
Manual clamping of sample using hand wheel clamp.
Benchtop model
Single Push button operation
Dual head for paper & board testing
Individual diaphragms for Paper & Board Test
Individual Bourdon Type Pressure Gauges for both the heads operation
Selector switch to select either Paper testing or Board testing.
Pressure gauge unit i.e. Kg/cm²
Quick, Easy, Accurate & User Friendly Operation
All replaceable parts are readily available
Operates on Power supply of AC 220V, 5A, 50Hz

Supplied complete with following accessories:

A spare rubber diaphragm
Standard aluminum foils - Medium Range - for calibration and cross-verification purpose.
Calibration certificate
C Spanner to open the diaphragm clamping nut
Test fluid bottle

Instrument BodyFabricated from Mild Steel Material
No of Heads02 Different heads - One for Paper testing & Another for Board Testing
PaintPowder coating in attractive shades
Body size470 x 525 x 560 (D X H X W) MM
Test FluidEP 140 Gear Oil
Capacity of Test Fluid Tank250 ml
Rate of Fluid Displacement170 ± 16 ml / Minute (For corrugated board and paper board)
Rate of Fluid Displacement96 ± 6 ml / Minute (For Paper material)
Opening of upper clamp31.50 mm (For corrugated board) / 30.50 mm (For paper)
Opening of Lower clamp31.50 mm (For corrugated board) / 33.10 mm (For paper)
Electric MotorReputed make induction motor to yield constant rate of pumping
Pressure gaugeBourdon Type Pressure Gauges
Selector SwitchTo changeover to paper & paper board mode
Dial Gauge 108 KG/CM2 - For Paper burst test
Dial Gauge 240 KG/CM2 - For Paper board burst test
Pressure Resolution0.1 Kg/cm2 & 0.5 Kg/Cm2 for paper & board test respectively
Power Supply220 Volts, 50 Hz, Single Phase, AC Supply
Weight (Approx.)53.350 PER UNIT

Rubber Diaphragm For Corrugated Board

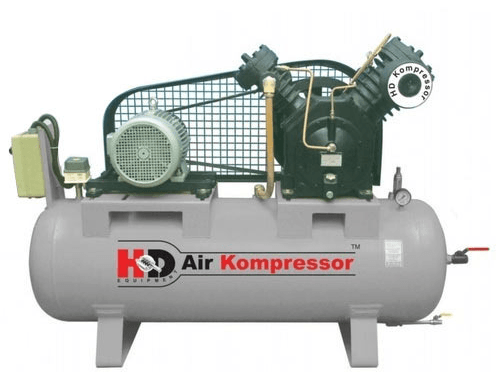

Air Compressor For Pneumatic Clamping System
