Compliance Standards:
- IS : 2720 (PART‑X), IS : 4332 (PART‑V)
Details:
- A screw operated load frame capacity 50 KN (5000 kgf) with a gear box and motor drive giving 1.25, 1.5 and 2.5mm/min, rates of strain, Suitable for operating on 230 volts, single phase AC.
- Cone seating : One pair of cone seating
- Adapter : Adapter for proving ring and strain dial gauge bracket.
- Coning tools : One pair of male/female coning tools for 38 mm dia samples

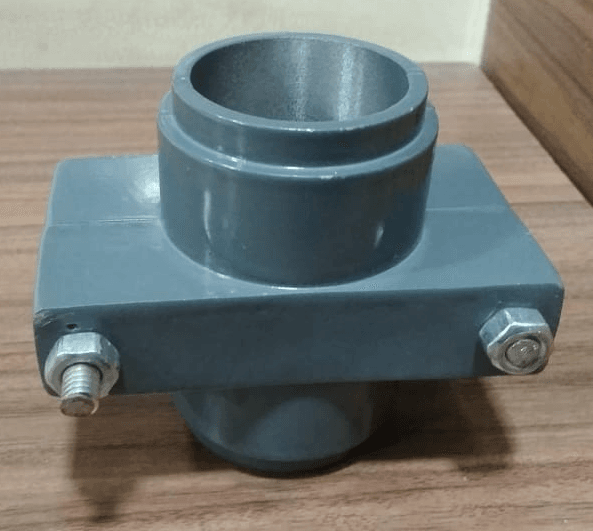

- Split Mould Size : 38 mm x 76 mm ‑ 1 no.
- Proving ring : High sensitivity proving ring 250 kgf with Calibration chart

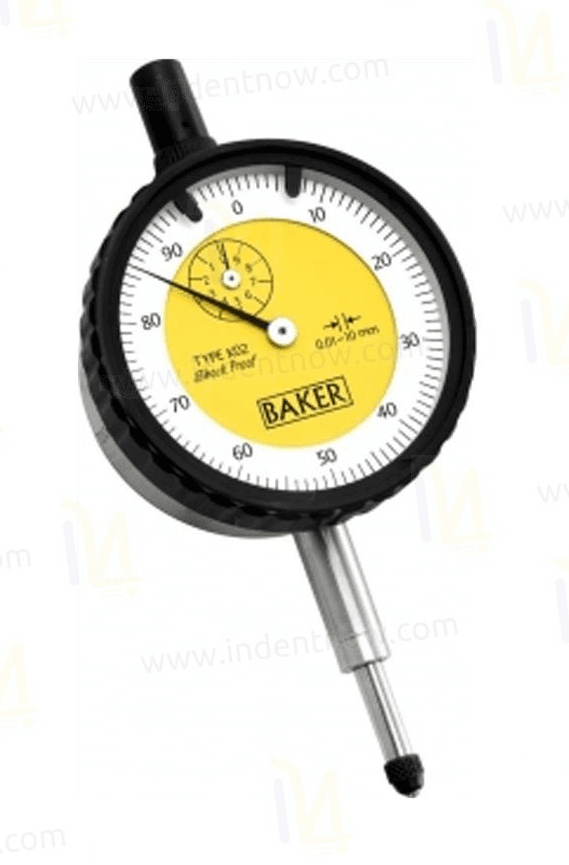

- Dial gauge : 0.01 mm x 25 mm travel
Note:
- Coning tools and split mould for 50 mm, 75 mm and 100 mm dia available at extra cost.
- NABL Calibration of Proving ring and dial gauge at extra cost.
