V Funnel Test Apparatus

Model Number : CT-SCC-003

V Funnel is one of the apparatus of the SCC (Self Consolidating Concrete) test. Primarily used for viscosity determination. This test also gives the filling ability of the concrete.

Product PDF Instant Quote

DetailsTechnical SpecificationsAccessoriesSpares

Compliance standard

IS 1199:PART 6/EN 12350-9: 2010

Application of V‑Funnel test method for SCC :

The V‑ Funnel flow time is the period in which, a defined volume of SCC (self‑consolidating concrete) needs to pass through a narrow opening and gives an indication of the filing ability of SCC, provided that blocking and or segregation do not take place. The flow time of the V‑Funnel test is to some degree related to the plastic viscosity.

Construction Details :

The apparatus consists of a V‑shaped funnel, which is supported on a Mild steel rigid frame. The frame and the funnel are spray painted or powder coated in attractive shades..

Essential Accessories at extra cost as per following :

Scoop
Ruler
Stopwatch
Trowel

Note : Also available in all S.S. or Acrylic construction.

Overall Dimensions570 X 570 X 1120(L X W X D) mm
Weight (Approx) 16 kg

Digital Stop Watch

Foot Rule (measuring Scale) Steel - 600 Mm/24"

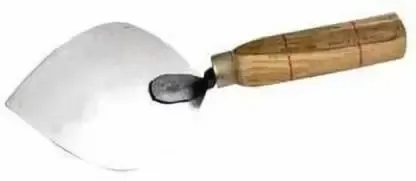

Masonary Trowel Medium - 6"
