Pneumatic Specimen Cutting Press For Geotextile

This is Electro-Pneumatic Model. The pumping is done by gear-motor drive. Simply press a button & it will start building pressure & will stop automatically at set pressure by means of a pressure switch. Without Air Compressor and cutting dies

Product PDF Instant Quote

DetailsTechnical SpecificationsAccessoriesSpares

Compliance Standards:

ASTM D4533, ASTM D4632, ASTM D638, ASTM D412

Introduction:

This machine uses a powerful, direct pneumatic piston ram system for fast and precise preparation of sample test specimens for tensile tests and all other DIN, ISO and ASTM standard sample shapes from rubber, elastomers, foam rubber, plastic films, foils and paper.

Note:

Please specify your test sample at the time of order.
Please arrange air supply at your premises or procure AIR COMPRESSOR from local market.

OperationPneumatic Press with electrical drive.
Maximum Hydraulic Press5 KN
PunchesTemplate for Trapezoid, Grab test
Piston Travel (Cutting Stroke)30 mm
Pressure Cut-OffON / OFF with Auto stop
Max material thickness5 mm
Reproducibility0.1%
Pneumatic force4-6 Bar
Power230 Volts, 50 Hz, Single Phase, AC Supply
Dimensions440mm x 300mm x 380mm
Weight50 Kg

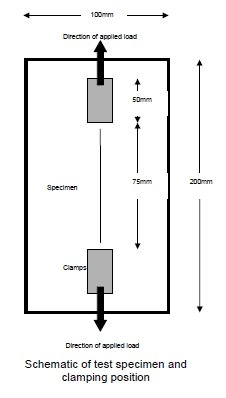

Punch Die - (grab Tensile Test) - 200 X 100 Mm

Punch Die (wide Width Test) 250 X 200 Mm

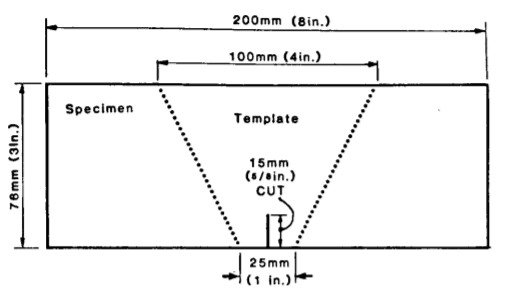

Punch Die (trapezoid Tear Test) Slit Type - 200 X 75 Mm

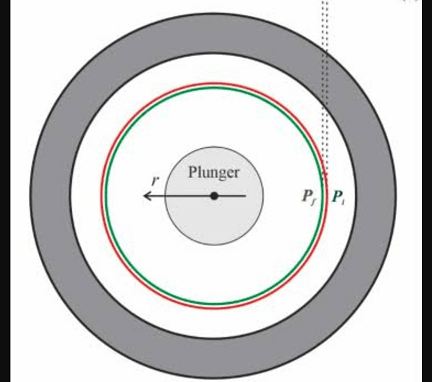

Punch Die Cbr Puncture Test - 250 Mm Circular Die
