Available Variants:
- Digital Controller And Motorised Stirrer
- Energy Regulator
- Refrigerated
Common Details:
Compliance Standards:
- Digital Controller And Motorised Stirrer / Energy Regulator: IS:3117-2019 / ASTM D88, AASHTO T72
- Refrigerated: ASTM D88 / IS:3117-2019, AASHTO T72 / BS 2000-72
Construction Details:
- The apparatus consists of stainless steel bath with oil cup which is centrally placed in a water bath.
- The bath has a lid, which contains a water cooling tube, thermometer socket and a straight heater.
- Temperature is controlled by PID Digital Temperature indicator cum controller.
- Stirring is done by FHP motorized stirrer.
- A thermometer can be inserted into the cup cover to cross check the Digital controller.

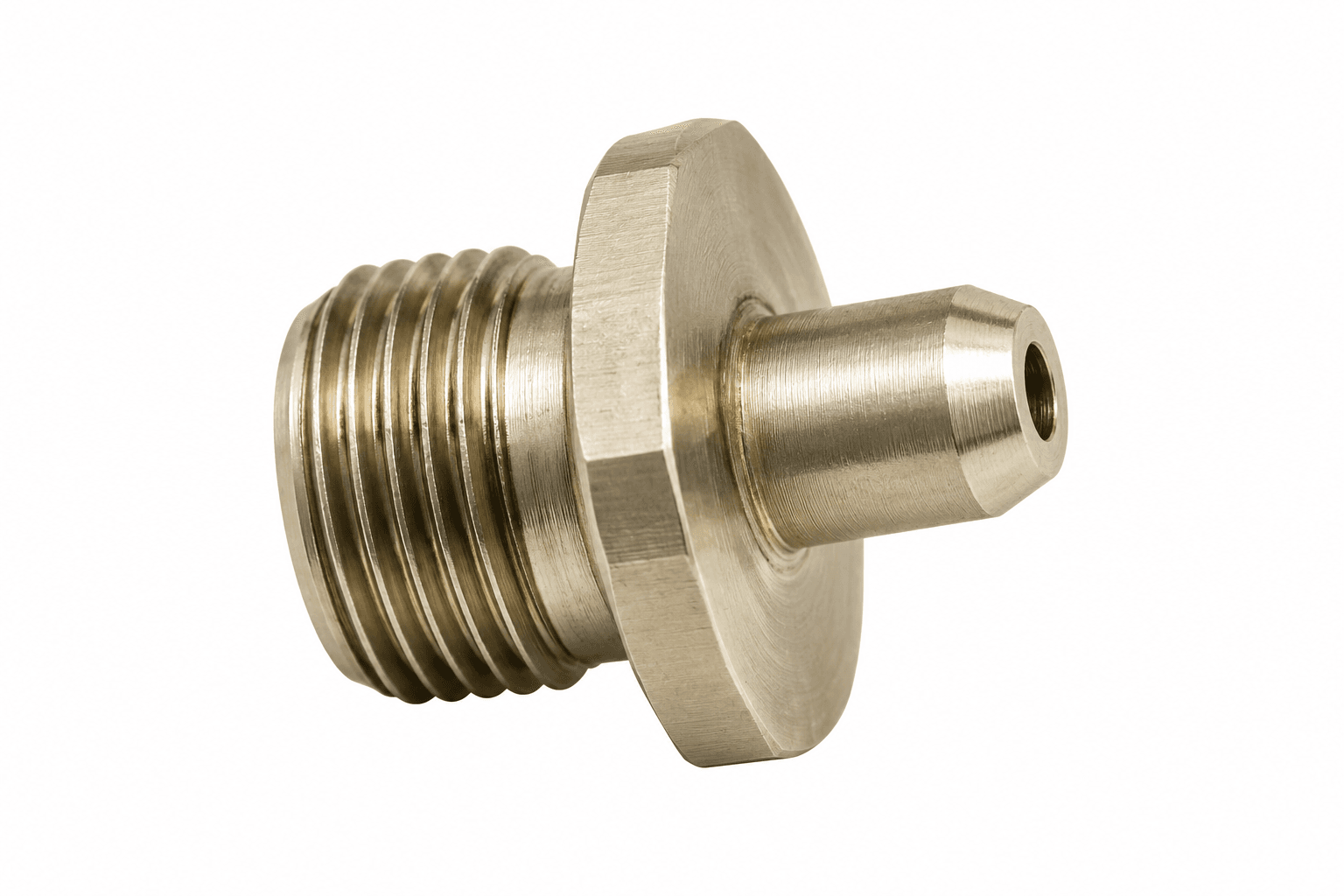

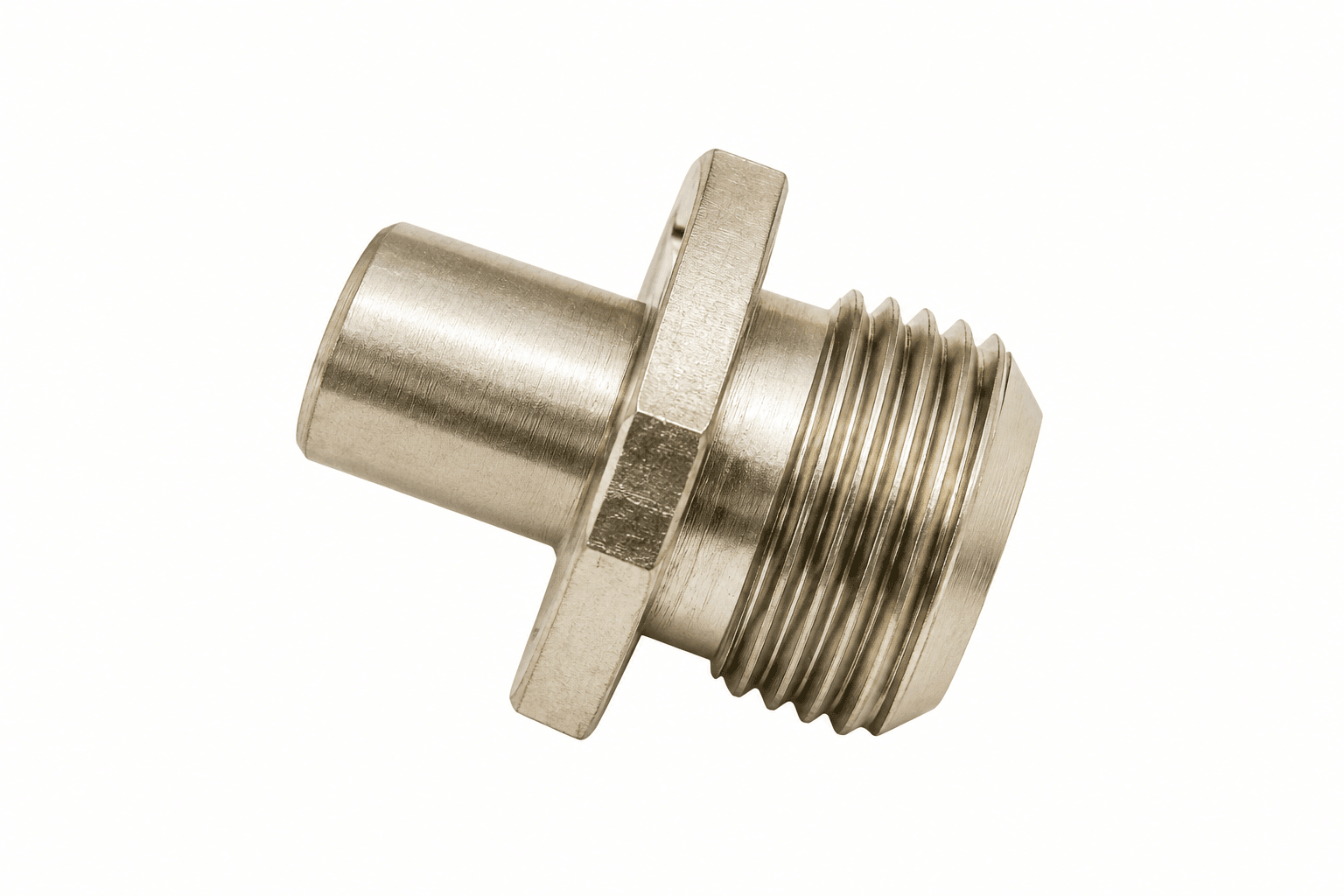

- Two jets - One Universal (1.765 mm) and One Furol (3.150 mm) can be screwed to the cup by a handle.
- Entire assembly works on 220 Volt, 50 Hz, Single phase, AC Supply.
Accessories Available At Extra Cost:
- ASTM/IP Glass Thermometers
- Digital Stop Watch (Essential accessory)

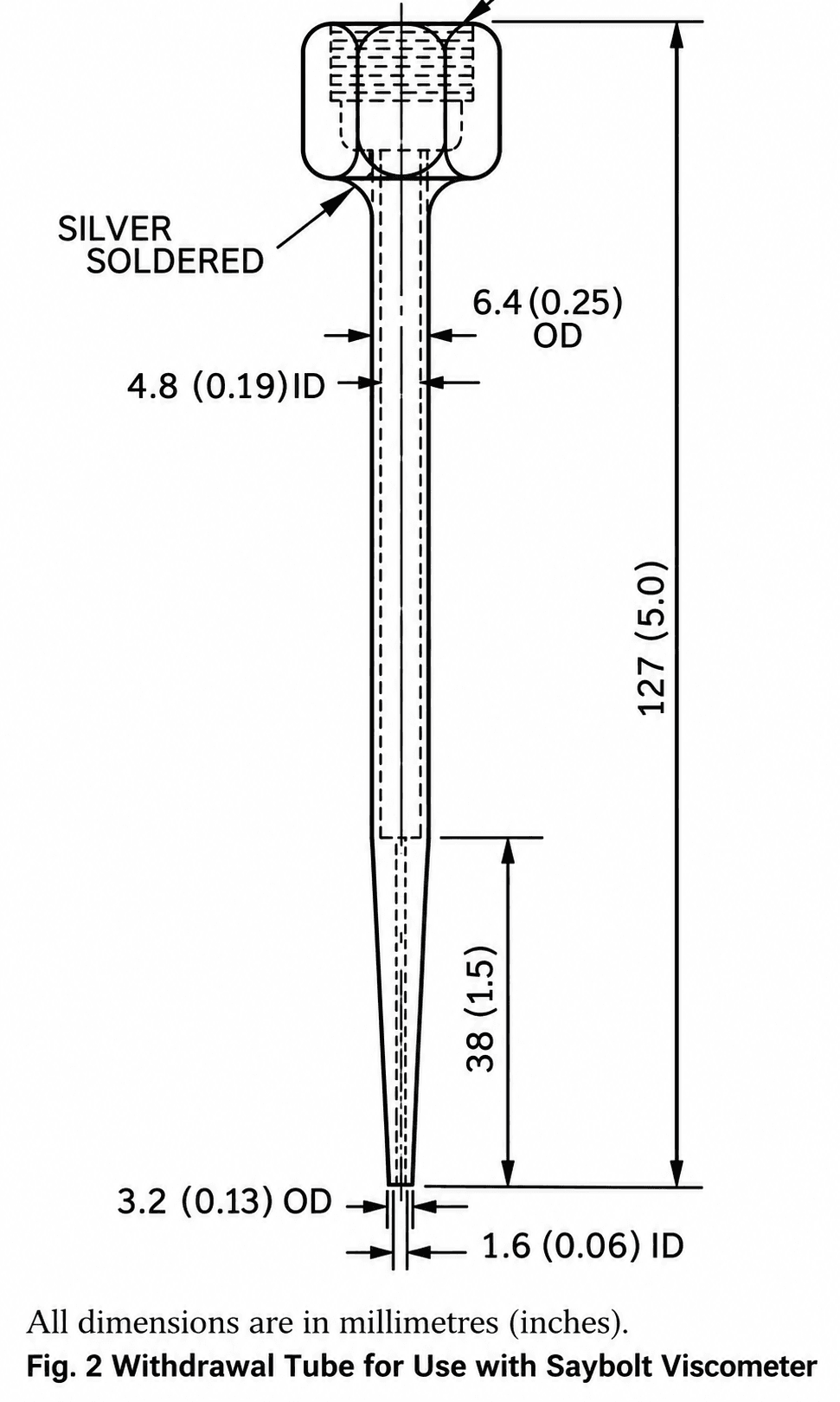

- Withdrawal Tube
- Strainer for Filtering

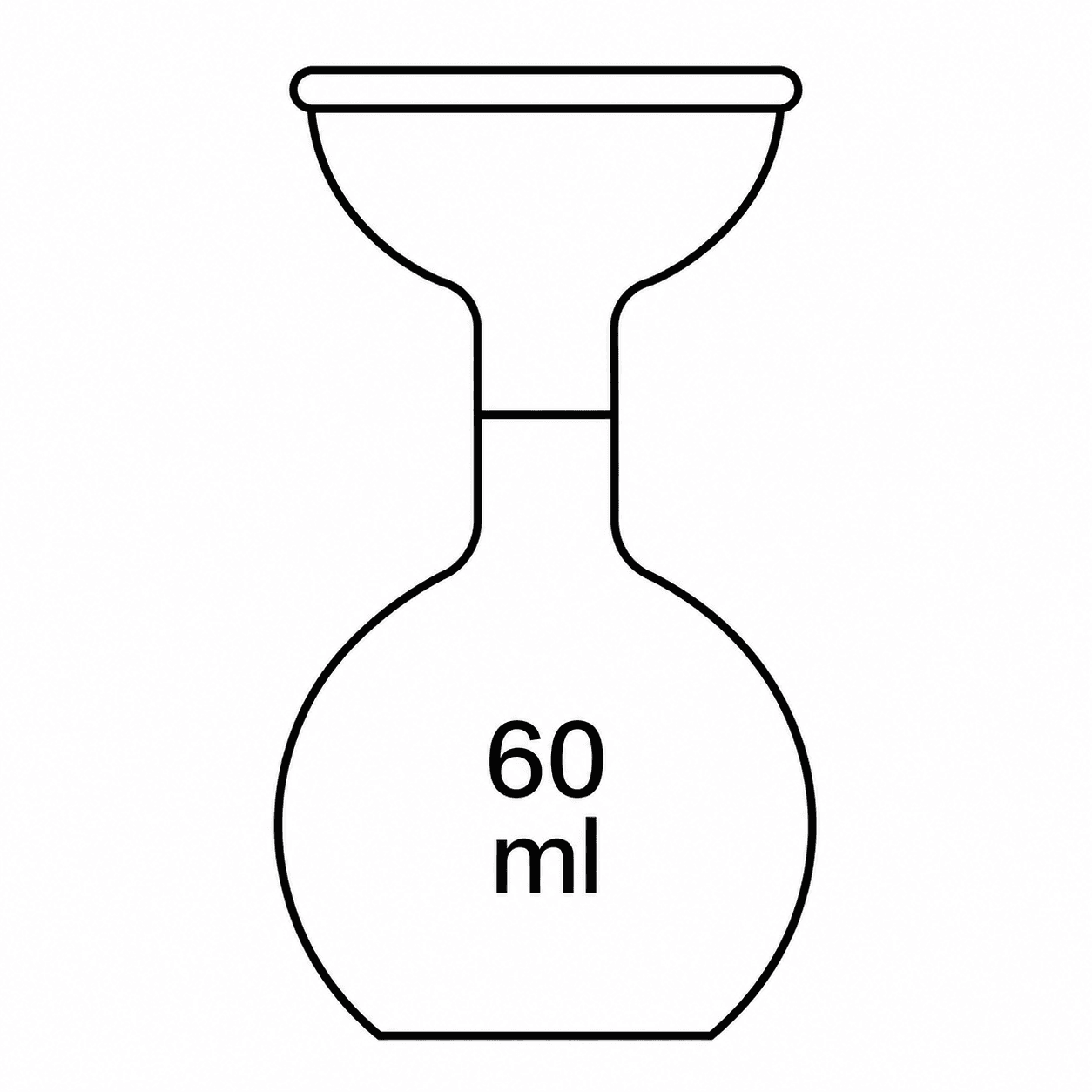

- Flask - 60 ml / 60 CC (Essential accessory)
Variant Details:
1. Digital Controller And Motorised Stirrer:
- The apparatus consists of stainless steel bath with oil cup which is centrally placed in a water bath.
- A thermometer can also be inserted into the cup cover to cross check the Digital controller. (available at extra cost)
Following parts and accessories will be the part of standard supply:
- Main Frame : 01 No
- Stainless Steel Bath : 01 No
- Thermometer Support : 01 No
- Universal and Furol Orifice : 01 No each
- Orifice wrench : 01 No
- Power Cord : 01 No
- Operation Instruction Manual : 01 No
2. Energy Regulator:
Following parts and accessories will be the part of standard supply:
- Main Frame : 01 No
- Stainless Steel Bath : 01 No
- Thermometer Support : 01 No
- Universal and Furol Orifice : 01 No each
- Orifice wrench : 01 No
- Power Cord : 01 No
- Operation Instruction Manual : 01 No
3. Refrigerated:
Applications:
- The Saybolt Viscometer is used to determine empirical measurement of Saybolt Viscosity of petroleum products at specified temperatures.
- The time it takes for a 60 ml sample to flow through a tube with a specified diameter (furol (3.150 mm) and universal (1.765 mm)) is measured and reported in seconds.
- The viscometer can be used at any temperatures between 21 and 99 °C.
- The viscometer includes waterbath, motorized stirrer, Refrigeration system, electric heater with digital temp. controller with control accuracy of ± 0.1°C.
Construction Details:
- The apparatus consists of stainless steel bath with two sample cup.
- The bath has a lid which contains a thermometer socket and a straight heater.
- Temperature is controlled by PID Digital Temperature indicator cum controller.
- Stirring is done by FHP motorized stirrer.
- A thermometer can be inserted into the cup cover to cross check the Digital controller.
- Two jets - one universal and one furol can be screwed to the cup by a handle.
- Entire assembly works on 220 Volt, 50 hz, Single phase, AC Supply.
Supplied With Following Parts And Accessories:
- Universal Orifice : 2 pc
- Furol Orifice : 2 pc
- Thermometer Support : 2 pc
- Tube wrench : 1 set
- Stopper : 2 pcs
- Operation Instruction Manual : 1 Pc
The Following Accessories Are Available At Extra Cost:
- ASTM/IP Glass Thermometers
