Compact Loading Frame - 100 Kn

Model Number : TM-041-LM

Primarily used for Marshal test. It will be motorized with a uniform vertical movement of 50.8 mm/minute (2"/minute) suitable for operation 230 volts & 50 cycles single phase A.C. supply. It will be fixed with a reversible motor, reversing switch & limit switches to restrict the traveled capacity to 100 KN. As per ASTM D1559. Digital version with PC software also available

Product PDF Instant Quote

DetailsTechnical SpecificationsAccessoriesSpares

Compliance Standards:

ASTM D1559

Details:

It will be motorized with a uniform vertical movement of 50.8 mm/minute (2"/minute)
Suitable for operation 230 volts & 50 cycles single phase A.C. supply.
It will be fixed with a reversible motor, reversing switch & limit switches to restrict the traveled capacity to 100 KN.
Weight: 100.800 Kgs Approx.

Dimension25" X 14" X 51" approx (L x W x H)
Weight (Approx.)100.800 Kg

Filter Paper For Cbr Test 15 Cm Dia Pkt Of 100 Circles

Filter Paper For Marshall Test 100 Mm Dia Pkt Of 100 Circles

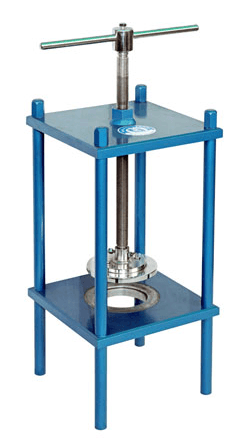

Sample Extractor - For 100 And 150mm Dia Specimen

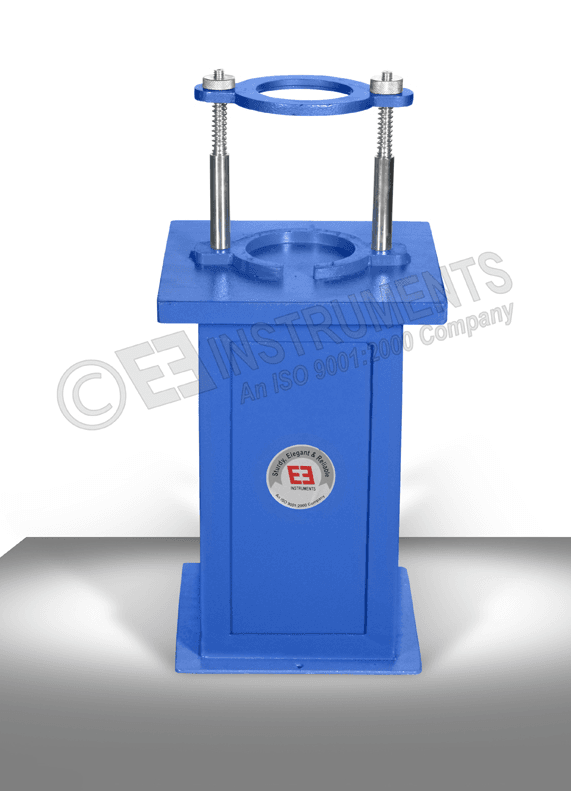

Compaction Pedestal - 4" Dia

Compaction Pedestal - 6" Dia

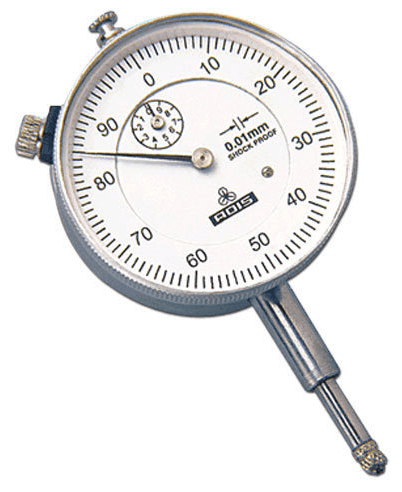

Dial Gauge - 0.01 X 25 Mm (adis)
